POF-Accessories

We can offer you several equipment for the field of development and testing of systems using Plastic Optical Fibers (POF). If desired, we are able to customize the equipment to your needs. Moreover we would be pleased to support you during the realization of your application.

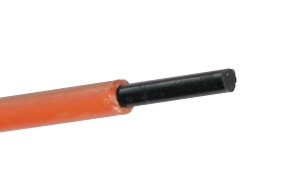

Plastic Optical Fiber 1mm Toray: PFDU-CD1001-23ABD orange NA: 0.5 (60°) Temperature: -55..85°C End surface: humid polish, Tyco cutting tool

Plastic Optical Fiber 2mm Toray: PGR-FB2000 NA: 0.5 (60°) End surface: humid polish, Tyco cutting tool

Scrambler POF-SCB Mode scrambler 10 eight-shape windings attenuation 2dB

Price list:    pof_pricelist.pdf (177 kb)

  [top]

POF Connectors

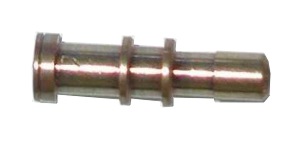

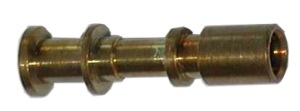

MOST insert male: Tyco 0-1355532-3	MOST insert female: Tyco 1-1355533-3

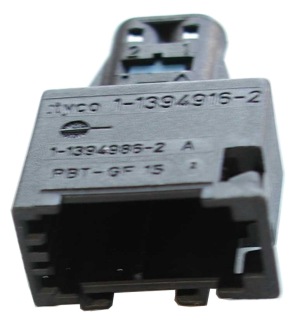

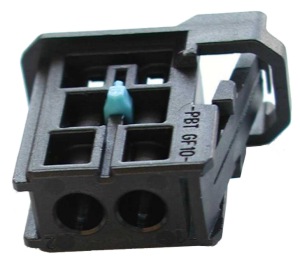

Connector male: Tyco 1-1418862-0 (1-1394987-0)	Connector female: Tyco 1-1394916-2

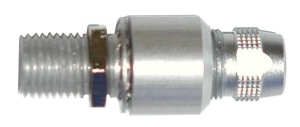

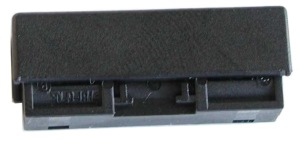

Insert connection AMP 1355734-1	FSMA-Insert Adapter: VELICKOV Engineering

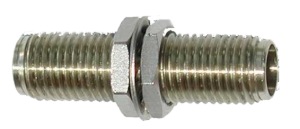

FSMA male: Ratioplast 1/1,5/2,3mm	FSMA female: Ratioplast
ST male: Ratioplast 1/1,5/2,3mm	ST female: Ratioplast

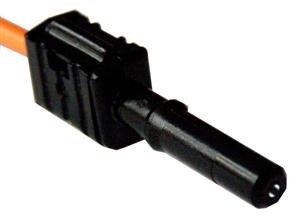

HFBR male

Price list:    pof_pricelist.pdf (177 kb)

  [top]

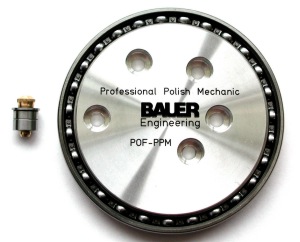

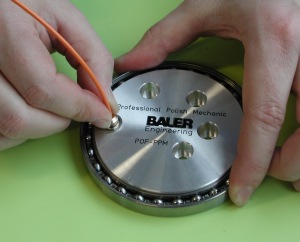

Professional Polish Mechanics (PPM)

Fiber adapter and PPM

Polish principle

Features

• Precision double ball bearing mechanics for humid fiber polish
• Stable vertical position
• Variable polish diameters. Allowing to utilize the whole polish area.
• Recommended abrasive grades: course > 10µm, middle = 5µm, fine = 1µm
• Easy move of the adapter between different abrasive grades

PPM technical data

• Configuration: 5 holes
• Dimensions: Ø 100 x 12 mm
• Weight: 290g

Adapter technical data

• Fibers: available for all types of wide core (>500µm) fibers
• Dimensions: Ø 11 x 18 mm
• Weight: 7g

Datasheet:    ppm_ds.pdf (111 kb)
Price list:    pof_pricelist.pdf (177 kb)
