We can offer you several equipment for the field of development and testing of systems using Plastic Optical Fibers (POF). If desired, we are able to customize the equipment to your needs. On request all components are also available as OEM modules. Moreover we would be pleased to support you during the realization of your application.

Connection example

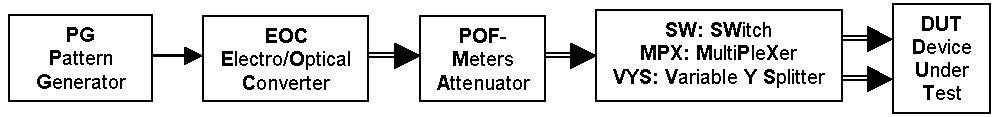

Figure: POF Equipment connection

PG: Pattern Generator

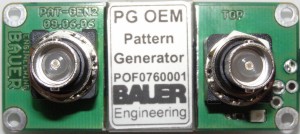

Photo: Pattern Generator OEM Pattern generator OEM module

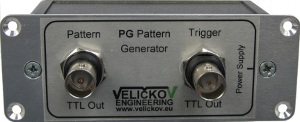

Photo: Pattern Generator device Pattern generator stand alone device

Electrical TTL pulse generator with trigger output.

Versions:
  • OEM module
  • stand alone device

Datasheet:  download pdf   pg_ds.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

EOC: E/O Converter (LES-MOD follower)

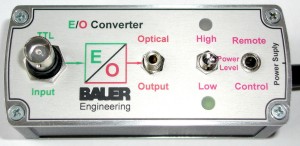

Photo: EOC double E/O converter stand alone device, dual opt. power levels

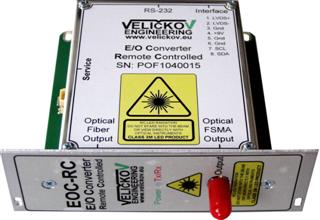

Photo: EOC-RC E/O converter remote controlled Neu

Digital Electro/Optical converter

Versions:
  • OEM module
  • stand alone device
  • remote controlled for MOST150New
Options:
  • single optical power level
  • dual optical power levels (remote controlled)

Datasheet:  download pdf   eoc_ds.pdf, download pdf   eoc-rc_ds.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

POF Meters: FPM Fiber Power Meter, PM Power Meter

Figure: FPM principle

FPM = 2in1

  • 1x optical splitter
  • 1x optical power meter

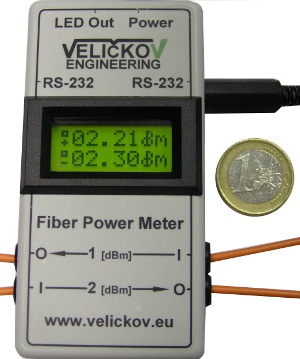

Photo: FPM double optical channel
FPM double optical channel version

Light power measure within a plastic optical fiber.

Meters Configurations:

Meters

Options

  • second optical channel
  • controllable LED source

Datasheet:  download pdf   fpm_ds.pdf
Manual:  download pdf   fpm_om.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

New SFAM: Spectral Fiber Attenuation Meter

Photo: SFAM Principle
SFAM Attenuation measure principle

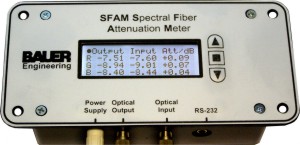

Photo: SFAM
SFAM device

Plastic optical fiber attenauation meter

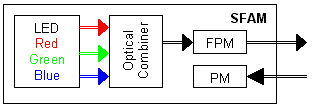

Figure: SFAM principle

SFAM = 4in1

  • 1x Optical LED RGB source
  • 1x Optical combiner 3:1
  • 1x FPM Fiber Power Meter
  • 1x PM Power Meter

Manual:  download pdf   sfam_om.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

POFA3: Variable Optical Attenuator 3th generation

Photo: POFA OEM module POFA3 OEM module

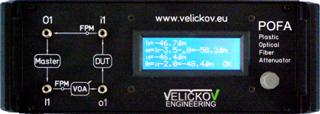

Photo: POFA device POFA3 stand alone device 19/2"

Photo: POFA & PG & EOC POFA3 stand alone device 19" with PG and EOC

Attenuation of the light power within a plastic optical fiber

POFA schema

POFA = 3in1

  • 1x VOA Variable Optical Attenautor
  • 2x FPM Fiber Power Meter
Versions:
  • OEM module
  • stand alone device
Options:
  • pattern generator
  • elctro-optical converter
  • optical switch
  • optical multiplexer
  • optical splitter
Manual:  download pdf   pofa3_om.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

POF-SW: Optical Switch

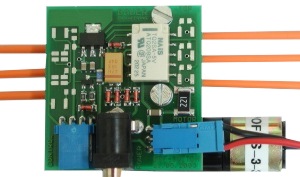

Photo: optical switch Optical switch OEM module

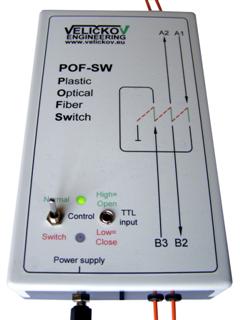

Photo: optical switch stand alone device Optical swith stand alone device

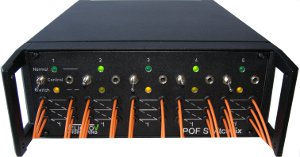

Photo: optical switch stand alone device 19'' Optical switch stand alone device 19/2"

Optical mechanical switch.

Switch scheme:

Figure: Optical switch scheme

Switch possibilities:

Figure: switch connections

Versions:

  • OEM module
  • stand alone device

Datasheet:  download pdf   pofswitch_ds.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

POF-SWM: Manual Optical Switch

Switch scheme:

Figure: SWM switch scheme

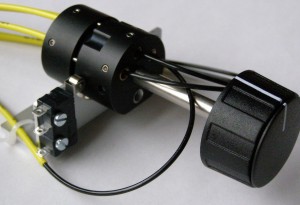

Photo: SWM Manual optical switch

Connection possibilities:

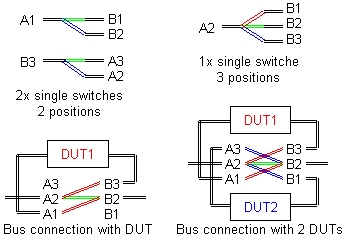

Figure: SWM connection possibilities

Options:

  • electrical contact check

Datasheet:  download pdf   swm_ds.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

POF-MPX: POF Multiplexer (= Scanner)

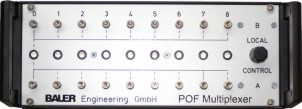

Photo: POF Multiplexer Optical multiplexer device 19/2", 2-opt. channels 8-positions

Optical multiswitch.

Switch scheme

Figure: MPX scheme

Datasheet:  download pdf   pofmpx_ds.pdf
Manual:  download pdf   pofmpx_om.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

POF-VYSC: Variable Y-Splitter/Combiner

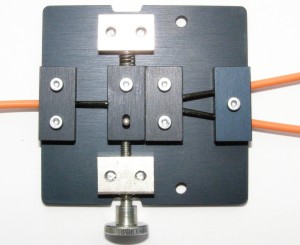

Photo: VYSC OEM module Variable Y splitter/combiner OEM module

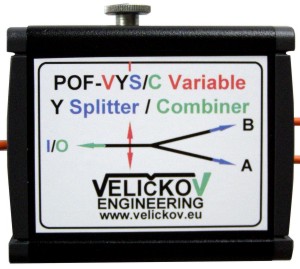

Photo: VYSC device Variable Y splitter/combiner stand alone device

Principle

Figure: VYSC principle

Versions:

  • OEM module
  • stand alone device

Datasheet:  download pdf   vysc_ds.pdf

Price list:  download pdf   pof_pricelist.pdf
top  [top]

Service and Specific Products

  • Consulting
  • Customer specific developments and products
  • Calibration services
  • Assembly of POF cables
top  [top]
